Oracle Apex and EBS Integration


  • Configuration from the Oracle APEX Perspective
  • Create Application in Workspace.

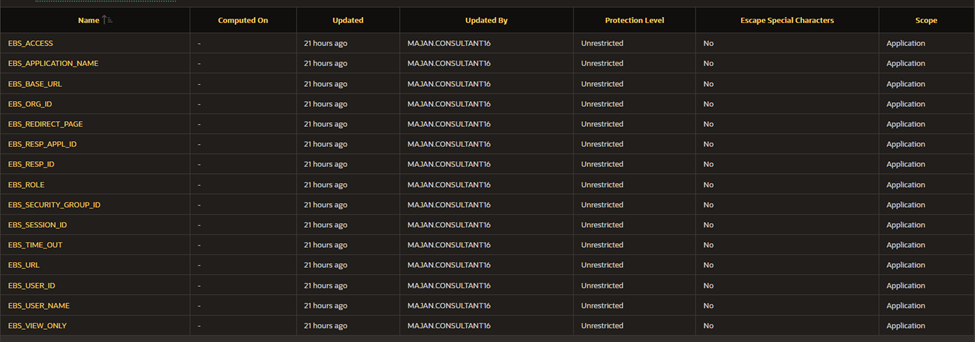

  • Create Application Items for Storing EBS Session Values.
  • Navigate to Authentication Schemes, Create Custom Authentication with 'No Authentication,' and Set it as the Current Authentication Scheme.

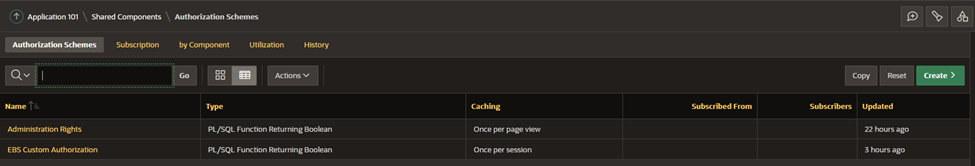

  •            Navigate to Authorization Schemes and Create a New Custom Authorization Scheme Set to 'Once per Session.


  • Here first need to create XXAPX_APEX_GLOBAL_PKG and related procedures in APPS scheme or we can create it in custom scheme.
  • Navigate to Security Attributes and Implement the Following Changes.
  • Choose Your Custom Authentication Scheme as the Selected Authentication Scheme.

  • In the Database Session section, Insert the Following Initialization PL/SQL Code.

        BEGIN

    APPS.XXAPX_APEX_GLOBAL_PKG.APPS_INITIALIZE(

        p_user_id           => v('EBS_USER_ID')

        ,p_resp_id           => v('EBS_RESP_ID')

        ,p_resp_appl_id      => v('EBS_RESP_APPL_ID')

        ,p_security_group_id => v('EBS_SECURITY_GROUP_ID')

        ,p_server_id         => NULL

        ,p_org_id            => v('EBS_ORG_ID'));

END;


1.           Global Package in the Apps Schema for Retrieving EBS Session Values.

/* Package Specification*/

create or replace PACKAGE XXAPX_APEX_GLOBAL_PKG AUTHID DEFINER AS

  -- DEBUG

  PROCEDURE debug (p_string VARCHAR2);

  --

  -- PAGE_ITEM_EXISTS

  --

  FUNCTION PAGE_ITEM_EXISTS(p_name IN VARCHAR2) RETURN BOOLEAN;

  --

  -- AUTO_LOGIN

  --

  FUNCTION AUTO_LOGIN

  RETURN BOOLEAN;

  --

  -- APPS_INITIALIZE

  --

  PROCEDURE APPS_INITIALIZE(p_user_id           IN NUMBER

                           ,p_resp_id           IN NUMBER

                           ,p_resp_appl_id      IN NUMBER

                           ,p_security_group_id IN NUMBER DEFAULT 0

                           ,p_server_id         IN NUMBER DEFAULT -1

                           ,p_org_id            IN NUMBER DEFAULT -1);

  --

  -- VALIDATE_LOGIN

  --

  FUNCTION VALIDATE_LOGIN(p_username IN VARCHAR2

                         ,p_password IN VARCHAR2)

  RETURN BOOLEAN;

END XXAPX_APEX_GLOBAL_PKG;

/* Package Body*/

create or replace PACKAGE BODY      XXAPX_APEX_GLOBAL_PKG AS

  --

  -- DEBUG

  --

  PROCEDURE debug (p_string VARCHAR2)

   IS

  --    PRAGMA AUTONOMOUS_TRANSACTION;

   BEGIN

      --NULL;

        INSERT INTO XXDPC_DEBUG_MSG VALUES (p_string);

      COMMIT;

   END;

  --

  -- PAGE_ITEM_EXISTS

  --

  FUNCTION PAGE_ITEM_EXISTS(p_name IN VARCHAR2) RETURN BOOLEAN IS

    -- Cursor with Application Item info

    CURSOR cur_api(pc_name VARCHAR2) IS

    SELECT ITEM_NAME

    FROM   APEX_APPLICATION_ITEMS

    WHERE  APPLICATION_ID  =  v('APP_ID')

    AND    ITEM_NAME       =  UPPER(pc_name);

    --

    lv_item_name  APEX_APPLICATION_PAGE_ITEMS.ITEM_NAME%TYPE := NULL;

  BEGIN

    IF (cur_api%ISOPEN) THEN

      CLOSE cur_api;

    END IF;

    --

    OPEN cur_api(pc_name => p_name);

      FETCH cur_api

      INTO  lv_item_name;

    CLOSE cur_api;

    --

    IF (lv_item_name IS NOT NULL) THEN

      RETURN(TRUE);

    ELSE

      RETURN(FALSE);

    END IF;

  EXCEPTION

    WHEN OTHERS THEN

      RETURN(FALSE);

  END PAGE_ITEM_EXISTS;

  --

  -- AUTO_LOGIN

  --

  FUNCTION AUTO_LOGIN

  RETURN BOOLEAN IS

    l_user_id            ICX_SESSIONS.USER_ID%TYPE;

    l_session_id         ICX_SESSIONS.SESSION_ID%TYPE;

    l_resp_id            ICX_SESSIONS.RESPONSIBILITY_ID%TYPE;

    l_function_id        ICX_SESSIONS.FUNCTION_ID%TYPE;

    l_resp_appl_id       ICX_SESSIONS.RESPONSIBILITY_APPLICATION_ID%TYPE;

    l_security_group_id  ICX_SESSIONS.SECURITY_GROUP_ID%TYPE;

    l_org_id             ICX_SESSIONS.ORG_ID%TYPE;

    l_time_out           ICX_SESSIONS.TIME_OUT%TYPE;

    l_ebs_url            ICX_SESSION_ATTRIBUTES.VALUE%TYPE;

    l_user_name          FND_USER.USER_NAME%TYPE;

    l_function_name      FND_FORM_FUNCTIONS_VL.FUNCTION_NAME%TYPE;

    l_authorized         BOOLEAN;

    L varchar2(32000);

    -- Get the context information from the icx session cookie.

    CURSOR c_session IS

    SELECT ISE.USER_ID

          ,FUS.USER_NAME

          ,ISE.SESSION_ID

          ,ISE.RESPONSIBILITY_ID

          ,ISE.FUNCTION_ID

          ,ISE.RESPONSIBILITY_APPLICATION_ID

          ,ISE.SECURITY_GROUP_ID

          ,ISE.ORG_ID

          ,ISE.TIME_OUT

          ,(select ISA.VALUE from ICX_SESSION_ATTRIBUTES ISA

              where ISA.SESSION_ID        =  ISE.SESSION_ID

              AND    ISA.NAME              =  '_USERORSSWAPORTALURL'

              )value

    FROM

          ICX_SESSIONS           ISE

          ,FND_USER               FUS

    WHERE-- (UPPER(FUS.USER_NAME)  =  UPPER(OWA_UTIL.GET_CGI_ENV('OAM_REMOTE_USER')) OR

    ISE.SESSION_ID        =  APPS.ICX_SEC.GETSESSIONCOOKIE

    AND    ISE.USER_ID           =  FUS.USER_ID

    AND    ISE.DISABLED_FLAG     =  'N'

    AND    ISE.LAST_CONNECT + NUMTODSINTERVAL(ISE.TIME_OUT,'MINUTE') > SYSDATE

    order by LAST_CONNECT desc

  --  AND    ISA.SESSION_ID        =  ISE.SESSION_ID

   ;

    --

    CURSOR c_function(pc_function_id FND_FORM_FUNCTIONS_VL.FUNCTION_ID%TYPE) IS

    SELECT FUNCTION_NAME

    FROM   FND_FORM_FUNCTIONS_VL

    WHERE  FUNCTION_ID  =  pc_function_id;

  BEGIN

  -- debug ('1 Remote user:'||OWA_UTIL.GET_CGI_ENV('OAM_REMOTE_USER')||'ICX SESSION Cookie:'||APPS.ICX_SEC.GETSESSIONCOOKIE);

    OPEN c_session;

      FETCH c_session

      INTO  l_user_id

           ,l_user_name

           ,l_session_id

           ,l_resp_id

           ,l_function_id

           ,l_resp_appl_id

           ,l_security_group_id

           ,l_org_id

           ,l_time_out

           ,l_ebs_url;

    CLOSE c_session;

    --

   debug('2 User Name:'||l_user_name|| 'function id:'||l_function_id||',resp_id:'||l_resp_id||'resp appl id'||l_resp_appl_id);

        --Start of Code Addition by SCHIVUKULA-KESTE as part of Defect#742. 17-MAR-2022

        IF l_function_id IS NULL THEN

         BEGIN

            SELECT fff.function_id,frt.responsibility_id,fr.application_id

                                          INTO l_function_id,l_resp_id,l_resp_appl_id

            FROM   fnd_user_resp_groups_direct furg,

                   fnd_user fu,

                   fnd_responsibility_tl frt,

                   fnd_responsibility fr,

                   fnd_application_tl fat,

                   fnd_application fa,

                   fnd_menu_entries_vl fme,

                   fnd_form_functions_tl fff

            WHERE  furg.user_id = fu.user_id

                   AND furg.responsibility_id = frt.responsibility_id

                   AND fr.responsibility_id = frt.responsibility_id

                   AND fa.application_id = fat.application_id

                   AND fr.application_id = fat.application_id

                   AND frt.LANGUAGE = Userenv('LANG')

                   AND fme.menu_id = fr.menu_id

                   AND fme.function_id = fff.function_id

                   AND fme.grant_flag = 'Y'

                   AND fu.user_id = l_user_id

                   AND ( furg.end_date IS NULL

                          OR furg.end_date >= Trunc(SYSDATE) )

                                                           AND (

                                                                                                        fr.end_date IS NULL

                                                                                        OR

                                                                                                        fr.end_date > trunc(SYSDATE)

                                                                        )

                   /*AND EXISTS (SELECT '1'

                               FROM   fnd_lookup_values

                               WHERE

                       lookup_type = 'XXEPC_APEX_AUTH_FUNC'

                       AND meaning = fff.user_function_name

                       AND ( end_date_active IS NULL

                              OR end_date_active >= Trunc(SYSDATE)

                           )

                       AND enabled_flag = 'Y') */

                                                                        AND       ROWNUM=1; --In case the Function is Assigned under Multiple Responsibilities

        EXCEPTION

            WHEN NO_DATA_FOUND THEN

              l_function_id := -1;

                                        WHEN OTHERS THEN

              l_function_id := NULL;

        END;

        END IF;

         debug('3 User Name:'||l_user_name|| 'function id:'||l_function_id||',resp_id:'||l_resp_id||'resp appl id'||l_resp_appl_id);

        IF l_ebs_url is null THEN

          l_ebs_url := substr(fnd_profile.value('ICX_PAY_SERVER'),1,instr( fnd_profile.value('ICX_PAY_SERVER'),'ibyecapp')-1)||'OA.jsp?OAFunc=OANEWHOMEPAGE';



        END IF;



    OPEN c_function(pc_function_id => l_function_id);

      FETCH c_function

      INTO  l_function_name;

    CLOSE c_function;

     debug('4 Function Name:'||l_function_name||'EBS URL:'||l_ebs_url);

    --

    IF (ICX_SEC.CHECK_SESSION(l_session_id) = 'VALID') THEN

      APEX_UTIL.SET_SESSION_STATE('EBS_RESP_ID',l_resp_id);

      APEX_UTIL.SET_SESSION_STATE('EBS_RESP_APPL_ID',l_resp_appl_id);

      APEX_UTIL.SET_SESSION_STATE('EBS_SECURITY_GROUP_ID',l_security_group_id);

      APEX_UTIL.SET_SESSION_STATE('EBS_USER_ID',l_user_id);

      APEX_UTIL.SET_SESSION_STATE('EBS_USER_NAME',l_user_name);

      APEX_UTIL.SET_SESSION_STATE('EBS_ORG_ID',TO_CHAR(l_org_id));

      APEX_UTIL.SET_SESSION_STATE('EBS_URL',l_ebs_url);

      APEX_UTIL.SET_SESSION_STATE('EBS_SESSION_ID',APPS.ICX_SEC.GETSESSIONCOOKIE);

      --

      IF (PAGE_ITEM_EXISTS(p_name => 'EBS_BASE_URL')) THEN

        APEX_UTIL.SET_SESSION_STATE('EBS_BASE_URL',SUBSTR(l_ebs_url,1,INSTR(l_ebs_url,'/OA_HTML')));

      END IF;

      --

      APPS_INITIALIZE(p_user_id           => v('EBS_USER_ID')

                     ,p_resp_id           => v('EBS_RESP_ID')

                     ,p_resp_appl_id      => v('EBS_RESP_APPL_ID')

                     ,p_security_group_id => v('EBS_SECURITY_GROUP_ID')

                     ,p_server_id         => NULL

                     ,p_org_id            => v('EBS_ORG_ID'));

      --

      IF (FND_FUNCTION.TEST(l_function_name)) THEN

        l_authorized := TRUE;

        -- Call the standard apex login procedure to initialize a valid APEX session

        WWV_FLOW_CUSTOM_AUTH_STD.LOGIN(p_uname        => l_user_name

                                      ,p_password     => ''

                                      ,p_session_id   => APEX_UTIL.GET_SESSION_STATE('APP_SESSION'));

       debug('5 After Auto Login');

      --modified to derive the url from the correct responsibility that the user has if the function test fails

      ELSIF l_function_name is not null THEN

        BEGIN

              SELECT fff.function_id,frt.responsibility_id,fr.application_id

                                          INTO l_function_id,l_resp_id,l_resp_appl_id

            FROM   fnd_user_resp_groups_direct furg,

                   fnd_user fu,

                   fnd_responsibility_tl frt,

                   fnd_responsibility fr,

                   fnd_application_tl fat,

                   fnd_application fa,

                   fnd_menu_entries_vl fme,

                   fnd_form_functions_tl fff

            WHERE  furg.user_id = fu.user_id

                   AND furg.responsibility_id = frt.responsibility_id

                   AND fr.responsibility_id = frt.responsibility_id

                   AND fa.application_id = fat.application_id

                   AND fr.application_id = fat.application_id

                   AND frt.LANGUAGE = Userenv('LANG')

                   AND fme.menu_id = fr.menu_id

                   AND fme.function_id = fff.function_id

                   and fff.function_id = l_function_id

                   AND fme.grant_flag = 'Y'

                   AND fu.user_id = l_user_id

                   AND ( furg.end_date IS NULL

                          OR furg.end_date >= Trunc(SYSDATE) )

                                                           AND (

                                                                                                        fr.end_date IS NULL

                                                                                        OR

                                                                                                        fr.end_date > trunc(SYSDATE)

                                                                        )              ;

                                                                         debug('6 New Responsibility Id:'||l_resp_id||'Resp appl id:'||l_resp_appl_id);

                 APEX_UTIL.SET_SESSION_STATE('EBS_RESP_ID',l_resp_id);

                 APEX_UTIL.SET_SESSION_STATE('EBS_RESP_APPL_ID',l_resp_appl_id);

                 APPS_INITIALIZE(p_user_id           => v('EBS_USER_ID')

                             ,p_resp_id           => v('EBS_RESP_ID')

                             ,p_resp_appl_id      => v('EBS_RESP_APPL_ID')

                             ,p_security_group_id => v('EBS_SECURITY_GROUP_ID')

                             ,p_server_id         => NULL

                             ,p_org_id            => v('EBS_ORG_ID'));

              --

              IF (FND_FUNCTION.TEST(l_function_name)) THEN

                l_authorized := TRUE;

                -- Call the standard apex login procedure to initialize a valid APEX session

                WWV_FLOW_CUSTOM_AUTH_STD.LOGIN(p_uname        => l_user_name

                                              ,p_password     => ''

                                              ,p_session_id   => APEX_UTIL.GET_SESSION_STATE('APP_SESSION'));

                debug('7 After Auto Login');

             ELSE

                l_authorized := FALSE;

                debug('8 Function Test failed');

             END  IF;



      exception

        when no_data_found

        then

        l_authorized := FALSE;

         debug('9 Function Test failed');

       END;

     ELSE

         l_authorized := FALSE;

         debug('10 Function Test failed');

      END IF;

    ELSE

      l_authorized := FALSE;

         debug('11 ICX Session is not authorized');

    END IF;

    --

    RETURN l_authorized;



  END AUTO_LOGIN;





  --

  -- APPS_INITIALIZE

  --

  PROCEDURE APPS_INITIALIZE(p_user_id           IN NUMBER

                           ,p_resp_id           IN NUMBER

                           ,p_resp_appl_id      IN NUMBER

                           ,p_security_group_id IN NUMBER DEFAULT 0

                           ,p_server_id         IN NUMBER DEFAULT -1

                           ,p_org_id            IN NUMBER DEFAULT -1) IS

    --

    CURSOR c_application(pc_application_id FND_APPLICATION.APPLICATION_ID%TYPE) IS

    SELECT APPLICATION_SHORT_NAME

    FROM   FND_APPLICATION

    WHERE  APPLICATION_ID  =  pc_application_id;

    --

    l_application_short_name  FND_APPLICATION.APPLICATION_SHORT_NAME%TYPE;

  BEGIN

    OPEN c_application(pc_application_id => p_resp_appl_id);

      FETCH c_application

      INTO  l_application_short_name;

    CLOSE c_application;

    --

    FND_GLOBAL.APPS_INITIALIZE(user_id           => p_user_id

                              ,resp_id           => p_resp_id

                              ,resp_appl_id      => p_resp_appl_id

                              ,security_group_id => p_security_group_id

                              ,server_id         => p_server_id);

    --

    --MO_GLOBAL.INIT(p_appl_short_name => l_application_short_name);

    MO_GLOBAL.SET_POLICY_CONTEXT('S',p_org_id);

  END APPS_INITIALIZE;

  --

  -- VALIDATE_LOGIN

  --

  FUNCTION VALIDATE_LOGIN(p_username IN VARCHAR2

                         ,p_password IN VARCHAR2)

  RETURN BOOLEAN IS

  BEGIN

    RETURN FND_USER_PKG.VALIDATELOGIN(username => p_username

                                     ,password => p_password);

  END VALIDATE_LOGIN;

END XXAPX_APEX_GLOBAL_PKG;


1.       Configuring EBS to Invoke an Oracle APEX Page

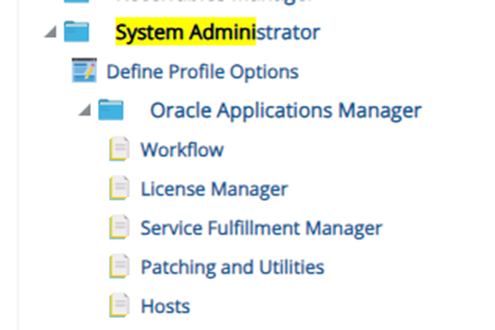

  •          Log into Oracle EBS with the System Administrator User.
  •       Within the System Administrator menu, select 'Define Profile Option' to access Oracle Fusion Applications.


  •         In the Profile -> System section, search for profiles containing '%APEX%' and click 'Find'.


  •  It will open the following page. In the 'Site' option, you need to enter the Apex Application Base URL.

       Ex. http://applupg1.dapeco.com.om:8081/apex
  •   In 'Application -> Function,' create a function to open an Apex page from the EBS menu.




  • In Html call need to pass url and parameters for Ex.

GWY.jsp?targetAppType=APEX&p=BUDGET-MANAGEMENT-SYSTEM:HOME:::::EBS_RESP_ID,EBS_RESP_APPL_ID,EBS_SECURITY_GROUP_ID:[RESPONSIBILITY_ID],[RESP_APPL_ID],[SECURITY_GROUP_ID]


  •   After creating the function, assign this function to the menu.


In the Apex screen, create a navigation bar entry that allows users to log off and return to the Oracle EBS home page.



--- Navigation bar entry for Oracle Home: - Use “URL” as Target type and Put below code in URL Target

&EBS_BASE_URL.OA_HTML/OA.jsp?_rc=FNDPORTALRELEASEAM&_ri=0&retainAM=N


--- Navigation bar entry for Log Off User: - Use “URL” as Target type and Put below code in URL Target

&EBS_BASE_URL.OA_HTML/OALogout.jsp?menu=Y









Comments

Popular posts from this blog

Upload Document and Download Document In Directory
